Shallow Foundation Design in Windsor Ontario: Bearing Capacity on Glacial Clay

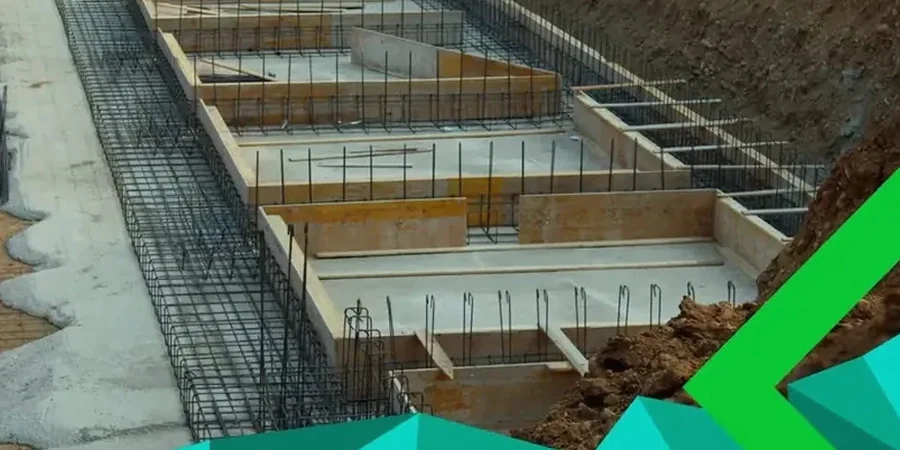

Designing a spread footing in east Windsor's sandy loam demands a different approach than in the west end, where the ground transitions into soft, sensitive Leda clay deposits left by the retreat of Lake Warren. This contrast is the daily reality of geotechnical work across the Detroit River borderlands. The city’s flat topography, averaging 190 meters above sea level, masks a complex subsurface of glacial lake plain sediments that can lose strength dramatically when disturbed. A reliable test pits program often reveals the first signs of these transitions before heavy drilling begins. Our team analyzes these local variations using site-specific bearing capacity models rather than relying on generalized code tables, ensuring the shallow foundation design aligns with the actual stratigraphy encountered from South Windsor to Riverside. The interaction between the footing and the upper desiccated crust of the clay profile frequently governs the allowable settlement, not just the ultimate capacity, requiring a nuanced interpretation of local Windsor conditions.

In Windsor's Leda clay, the bearing capacity from the lab means nothing if you haven't checked the sensitivity against the construction schedule and sequence.

Our approach and scope

The standard approach for shallow foundation design here starts with a truck-mounted continuous flight auger rig to get past the frost-susceptible top layer, which in Windsor extends to at least 1.2 meters per the Ontario Building Code. We pair this with thin-wall Shelby tubes to extract undisturbed samples of the Leda clay, testing them under the triaxial cell at in-situ confining pressures to capture the soil's structured behavior. Knowing the clay's preconsolidation pressure is critical because overexcavation or dewatering can trigger a cascade of settlement across a block. When the clay layer is too shallow for a traditional spread footing, we often evaluate the load-spreading capability of a mat foundations alternative right at the design table, comparing the excavation cost against the reduction in differential settlement. Consolidation parameters are then fed into finite element models to verify that total and differential movements stay within the CSA S-500 tolerance for the superstructure, accounting for the seasonal moisture fluctuations common in Essex County.

Local considerations

What we see repeatedly in Windsor is that contractors underestimate the sensitivity of the Leda clay during excavation. A trackhoe bucket passing through the formation can remold the soil at the bearing elevation, instantly cutting the undrained shear strength by half. The biggest risk is not a catastrophic bearing failure but a slow, differential settlement that cracks masonry walls six months after the keys are handed over. Another local pitfall is placing footings on uncontrolled fill along the older riverfront lots without verifying the density through a sand cone density test; historical maps show many of these areas were backfilled with mixed debris decades ago. The design must explicitly state the required base protection—usually a mud slab or a geotextile filter—to prevent the clay from pumping water under cyclic loading.

Typical values

Parameter	Typical value
Typical allowable bearing pressure (Leda clay, stiff)	100–150 kPa
Frost depth (per OBC Supplementary Standard SB-1)	1.2 m minimum
Settlement analysis type	Immediate + consolidation, 3D FE model
Minimum footing width on fill	600 mm (strip) after compaction verification
Design standard	NBCC 2020 Part 4, CSA A23.3:19
Typical undrained shear strength (Su) range	30–75 kPa (upper weathered crust)
Sampling method for lab testing	ASTM D1587 Shelby tube, ASTM D4767 triaxial

Associated technical services

Bearing Capacity and Settlement Analysis

Analytical and numerical modeling of strip, pad, and combined footings using SHANSEP or critical state concepts for Leda clay, delivering allowable bearing pressures and time-dependent settlement curves.

Frost-Protected Shallow Foundation Design

Detailing of insulation layouts and footing depths to meet OBC frost protection requirements without overexcavating in the sensitive clay crust.

Construction Subgrade Inspection

On-site verification of bearing stratum integrity using dynamic cone penetrometer correlations and visual classification to confirm design assumptions before rebar placement.

Frequently asked questions

How much does a shallow foundation design package cost for a residential lot in Windsor?

For a standard residential property in Windsor, the geotechnical investigation and shallow foundation design package typically ranges from CA$2,460 to CA$4,110, depending on the number of boreholes required and the complexity of the clay profile.

What is the minimum footing depth in Windsor to avoid frost heave?

The Ontario Building Code requires a minimum of 1.2 meters for frost protection in Windsor. However, in areas with poorly drained silty clay, we often recommend extending to 1.4 meters or adding rigid insulation to prevent ice lens formation in the sensitive Leda clay.

Can you design a shallow foundation on the soft clay near the Detroit River?

Yes, but it requires a careful evaluation of the clay's sensitivity. Near the river, the Leda clay tends to be softer and more compressible. We often use a mat foundation or ground improvement with stone columns to spread the load and reduce differential settlement to acceptable limits.

What lab tests are critical for shallow foundation design in Ontario?

We focus on consolidated-undrained triaxial tests with pore pressure measurement, one-dimensional consolidation tests to get the compression index and preconsolidation pressure, and Atterberg limits to correlate with the clay's sensitivity. These tests allow us to model both short-term and long-term settlement accurately.
