Retaining Wall Design in Windsor Ontario: Soil Conditions & Engineering

The excavator positions its bucket against a cut face near the Detroit River, exposing the layered clay till that defines so much of Windsor's subsurface. Our team watches the sidewall carefully—any sloughing or water seepage here tells a story about what the retaining wall will have to resist. Windsor sits on thick glacial deposits, and the soil profile can shift from stiff clay to loose sand within a single property. A standard precast block wall installed without understanding these layers rarely lasts a full freeze-thaw cycle. We design walls that work with the ground, not against it, factoring in the high groundwater table that comes with being surrounded by water on three sides. Every project starts with a site walk and a review of what the excavation reveals before a single calculation is run.

In Windsor, the most common retaining wall failure isn't overturning—it's poor drainage behind the wall combined with freeze-thaw expansion in clay backfill.

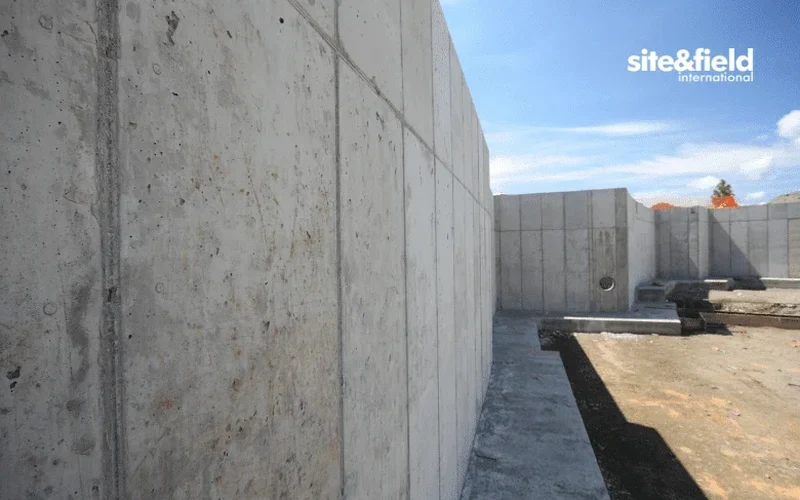

Our approach and scope

Windsor's historical expansion from riverfront industry to suburban subdivisions left a patchwork of fill and native soil that complicates retaining wall design. Old Walkerville and Ford City areas sit on decades of mixed industrial fill, while newer developments in South Windsor or East Riverside often cut into undisturbed clay plains. The geotechnical contrast is stark. We rely on the CPT test to map these transitions continuously, especially where wall heights exceed 1.2 meters and the Ontario Building Code requires a stamped design.

Our approach integrates CSA A23.3 for concrete elements and the NBCC 2020 for seismic provisions, but the real expertise lies in predicting how Windsor's saturated clays will behave under lateral load. We analyze both drained and undrained conditions, a distinction that matters enormously in a city where spring rains routinely saturate the upper 2 meters of soil.

Local considerations

The risk profile changes dramatically between a property in Walkerville and one in the newer subdivisions south of the 401. Walkerville's century-old fill often contains brick fragments and cinders that create uneven settlement patterns—a retaining wall here must be designed with generous drainage and a flexible structural approach. In South Windsor, the native clay is competent but expansive. We see walls pushed outward every spring when trapped moisture freezes and expands behind the stem.

The biggest mistake we encounter is a design that treats the entire city as having uniform soil. A wall that performs perfectly on Dougall Avenue may fail on Riverside Drive because the groundwater regime is completely different. Our designs always include a site-specific drainage plan and a construction sequence that accounts for temporary excavation stability, especially in the tight lot lines common in older Windsor neighborhoods.

Typical values

Parameter	Typical value
Maximum retained height (typical)	1.2 m – 4.5 m
Design standard (concrete)	CSA A23.3-19
Seismic hazard factor (Sa 0.2s)	0.22 – 0.32 per NBCC 2020
Groundwater depth (typical)	1.0 m – 3.5 m below grade
Soil type (predominant)	Glacial till / silt & lean clay
Design life (permanent walls)	50+ years
Backfill friction angle	28° – 34° (granular backfill)

Associated technical services

Design & Analysis for New Walls

Full geotechnical assessment including soil characterization, lateral earth pressure calculations, and structural design of gravity walls, cantilever walls, and mechanically stabilized earth (MSE) walls. We prepare sealed drawings for building permit applications.

Existing Wall Investigation & Remediation

Forensic review of distressed or failed retaining walls. We analyze tilt, cracking, and drainage issues, then design repair solutions ranging from tieback anchors to complete reconstruction with improved backfill specifications.

Frequently asked questions

At what height does a retaining wall require a building permit in Windsor?

Under the Ontario Building Code, a retaining wall exceeding 1.0 meter in height at the property line—or any wall retaining a surcharge such as a driveway or structure—requires a building permit and a design stamped by a licensed professional engineer. Walls under 1.0 meter without surcharge are generally exempt, but poor soil conditions can still warrant professional review.

What is the typical cost for retaining wall design in Windsor?

For a standard residential retaining wall in Windsor, the design cost ranges from CA$1,420 to CA$5,550 depending on wall height, soil complexity, and whether the project requires additional subsurface investigation. Commercial and municipal projects with taller walls or more complex loading conditions will fall toward the upper end of this range.

How do Windsor's clay soils affect retaining wall performance?

Windsor's glacial clays are moderately to highly plastic, which means they expand when wet and shrink when dry. This volume change exerts additional lateral pressure on walls. We specify granular backfill with a minimum 300 mm drainage zone and a perforated weep system at the base to reduce hydrostatic pressure and minimize freeze-thaw effects.

Do you need to do a soil investigation before designing the wall?

Yes, a site-specific geotechnical investigation is essential. We typically bore or excavate a test pit to identify the soil profile, measure groundwater depth, and collect samples for laboratory strength testing. Without this data, assumptions about bearing capacity and lateral earth pressure are unreliable and can lead to under-designed walls.
